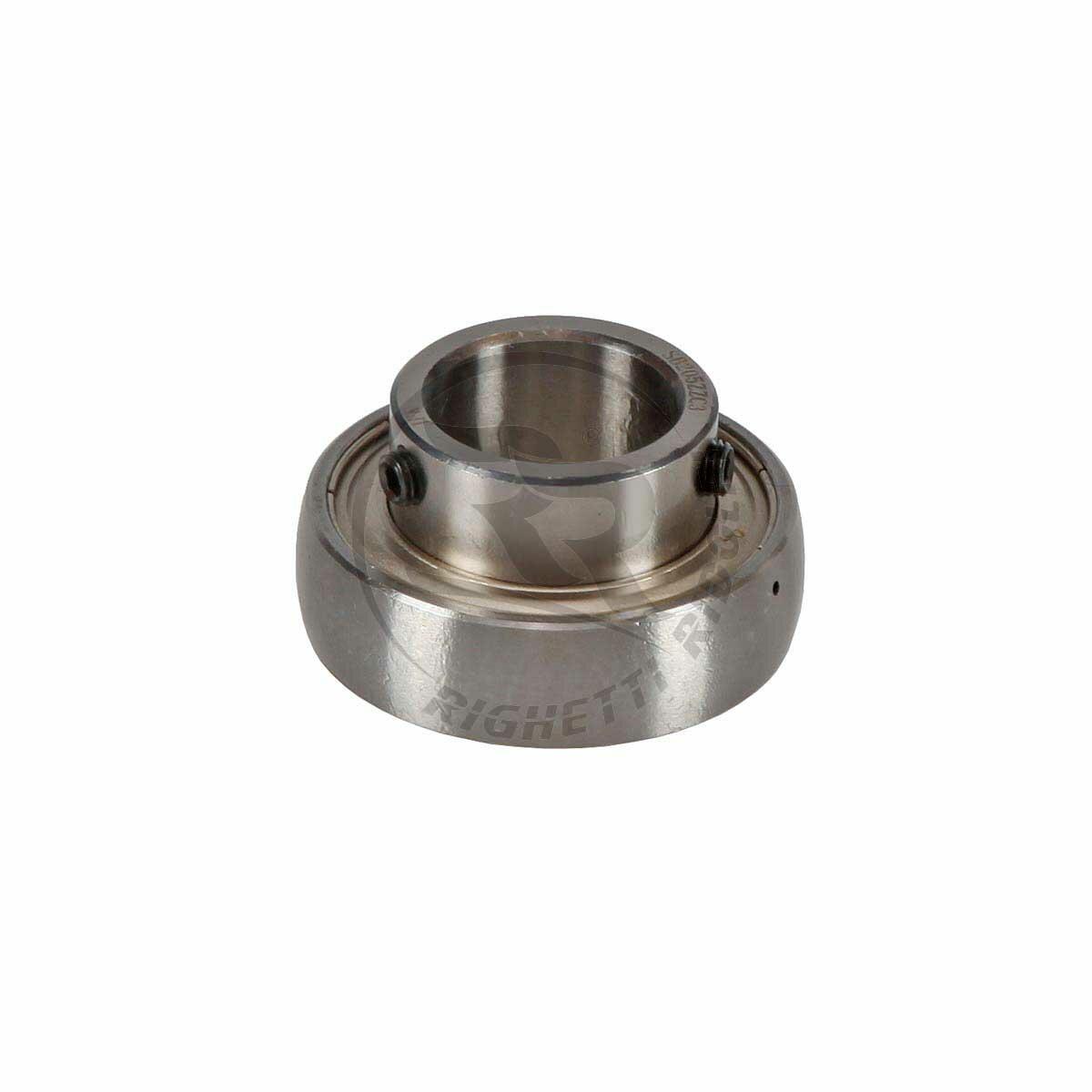

25mm Rear Axle Bearing

The SB205-25 V29 ZZ C3 is a compact radial insert ball bearing designed to deliver reliability and durability in demanding conditions. Thanks to its double metal shields (ZZ), it offers effective protection against dust, dirt, and contaminants, preserving internal lubrication and minimizing wear even in harsh environments. The C3 internal clearance provides greater tolerance to thermal expansion and high-speed rotation. The V29 version features a specially modified collar with two set screws, ensuring a stable and secure fit on the shaft.
Technical specifications:
Type: Radial insert ball bearing (SB type)
Inner diameter: 25 mm. Outer diameter: 52 mm
Sealing: ZZ - double metal shields
Internal clearance: C3 - increased clearance for high speed and thermal expansion
Version: V29 - modified collar for stable mounting
Locking system: 2 set screws on the inner collar for secure shaft fixation

Sold Each.
